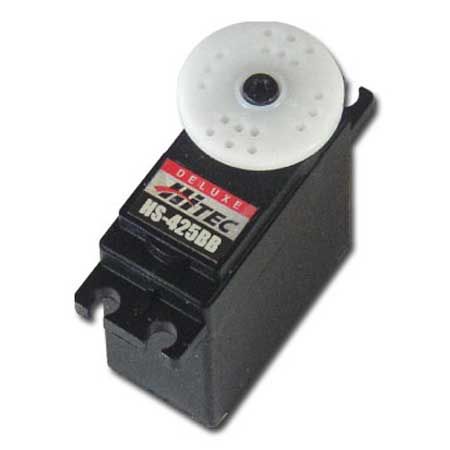

Hitec Servo – HS-425BB

Hitec Standard Servo with Deluxe Dual Ball Bearings (4.1kg / 6V)
The HS-425BB is offered with dual ball bearings, impact resin gears and high performance circuitry.

Application20-60 Size Aircraft; 30 Size Helicopters; Steering and Throttle for Cars, Trucks, Boats

Torque 45.8 oz-in (3.3kg-cm) @ 4.8V; 56.9 oz-in (4.1kg-cm) @ 6V

Speed0.21 sec/60 deg @ 4.8V; 0.16 sec/60 deg @ 6V, at no load

Length 1.59 in (40.6mm)

Width 0.77 in (19.8mm)

Height 1.44 in (36.6mm)

Weight 1.60 oz (45.5g)

Bushing Or Bearing – Bearing

Bearing Dual

Motor Type 3 Pole

Connector Type Universal

Gear Type

Nylon

Current Draw Idle 8mA

Voltage 4.8V to 6.0V

Deadband 8µs
